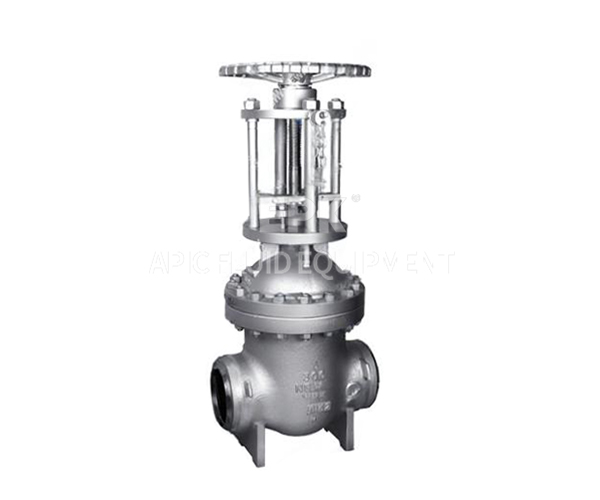

Parallel Gate valve

Parallel double gate valve is a position sealed valve that uses spring preloading to provide initial sealing force to the gate and valve seat under low pressure. The higher the medium pressure, the more reliable the sealing performance. Therefore, parallel double gate valves are widely used in high-temperature and high-pressure working conditions, such as steam and feedwater.

The core advantages of Parallel gate valves

Bidirectional sealing: The spring force evenly presses the gate plate against the valve seats on both sides, which can withstand bidirectional medium pressure. The installation direction is not strictly limited, making it suitable for pipelines that require bidirectional cutting.

Small flow resistance and consistent diameter: After the gate is opened, it completely separates from the flow channel, and the flow channel is in a straight through shape with low pressure loss, especially suitable for transporting large-diameter, low Reynolds number fluids.

Compact structure and low cost: Compared with Wedge gate valves, parallel gate valves do not require inclined wedge structures, have fewer parts, are easy to process, have low manufacturing costs, and are suitable for large-scale industrial applications.

Sealing performance of soft sealing options: When using rubber or plastic soft sealing, zero leakage can be achieved, suitable for clean working conditions such as drinking water, food and medicine.

Application scenarios of parallel gate valves

Water supply and drainage and sewage treatment: Large diameter water pipelines in municipal pipelines and sewage treatment plants use soft seals to achieve zero leakage and low flow resistance.

Low pressure gas pipeline: Compressed air system, gas inlet pipeline (PN ≤ 1.6MPa), spring loaded type with bi-directional sealing to prevent gas backflow.

Food and pharmaceutical industry: using stainless steel material and polytetrafluoroethylene soft seal to meet hygiene standards, used for opening and closing control of material conveying pipelines.

Medium containing solid particles: A parallel gate valve with a guide hole allows the passage of a cleaning device, used for solid-liquid mixed fluids such as slurry and ash (requiring the use of metal hard seal wear-resistant materials).
