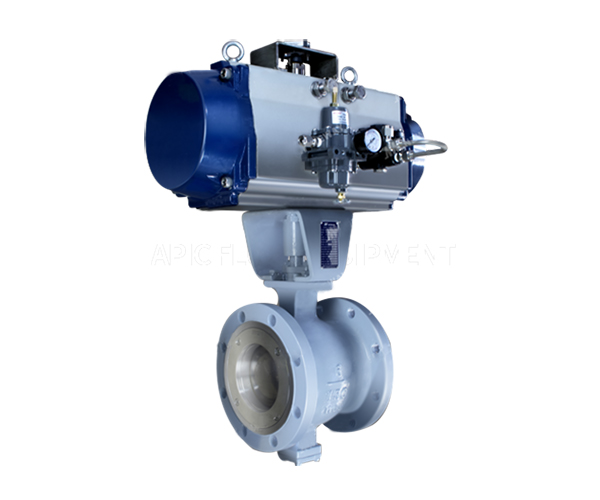

V-shaped regulating Ball valve manufacturer

The V-shaped regulating ball valve is a special type of Ball valve that achieves precise flow control through a V-shaped cut ball core. Its core feature is the V-shaped opening machined on the core, which changes the flow area between the opening and the valve seat by rotating the core, thereby achieving continuous adjustment and control of fluid flow.

Application areas:

Suitable for controlling high viscosity media with fibers and particles in industries such as petroleum, chemical, papermaking, metallurgy, wastewater treatment, power, and building materials

Characteristic

Accurate adjustment of performance:

The special shape of the V-shaped incision makes the flow characteristics of the valve close to the proportional percentage characteristics (or linear characteristics), with high adjustment accuracy, suitable for occasions that require fine control (such as chemical reactor feeding, sewage treatment dosing).

High sealing and reliability:

The metal hard seal structure can withstand high pressure (up to 42MPa) and high temperature (up to 600 ℃ or above), while the soft seal structure has extremely low leakage (in accordance with API 598 standard).

Self cleaning and anti clogging:

The shear effect of V-shaped incision can cut off impurities in the medium, reduce the risk of scaling or blockage, and is suitable for media containing solid particles, viscous or fibrous materials (such as slurry, food slurry).

Wear resistant and durable:

The ball core and valve seat are made of wear-resistant materials (such as hardened stainless steel, ceramics), with a long service life, especially suitable for high flow rate and high wear conditions.
