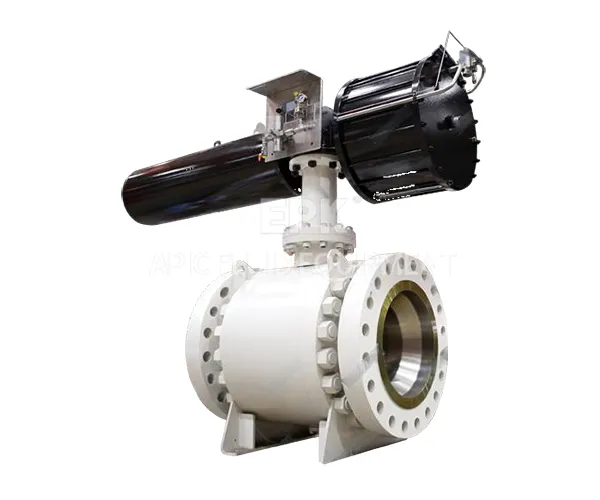

Side mounted soft sealed fixed ball valve

The side mounted fixed Ball valve adopts a two-piece or three piece split side mounted design, which complies with the API6D standard. Working temperature -46~200 ℃, especially suitable for fluid control in large-diameter and high-pressure pipelines. This series of fixed ball valves has dual blocking and relief functions.

Performance characteristics of side mounted soft seal fixed ball valve

Excellent sealing performance

The elastic compensation effect of soft sealing materials can achieve bubble level sealing, which is suitable for occasions with high leakage rate requirements.

Low flow resistance and strong flow capacity

The spherical channel has a full diameter, low medium flow resistance, low pressure loss, and is suitable for high viscosity or granular media.

Compact structure, easy maintenance

The side mounted design allows for online maintenance without the need to dismantle pipelines, reducing maintenance costs and downtime.

Wide applicability

Pressure range: PN1.0~PN16;

Temperature range: -60 ℃~200 ℃.

Flexible operation mode

Can be configured with manual handle, worm gear mechanism, electric actuator or pneumatic actuator to meet the requirements of automation control.

Application Area

Petrochemical industry: used for the transportation of oil products and chemical raw materials, such as the inlet and outlet of reaction vessels, storage tank pipelines.

Water supply and drainage system: cutting and regulating of tap water pipelines and sewage treatment plants, especially suitable for clear or slightly impure liquids.

Food and medicine: Due to the clean and non-toxic sealing material, it can be used for sterile pipelines in the food, beverage, and pharmaceutical industries.

Metallurgical power: switch control of cooling water systems, compressed air pipelines, and scenarios with high corrosion resistance requirements.
