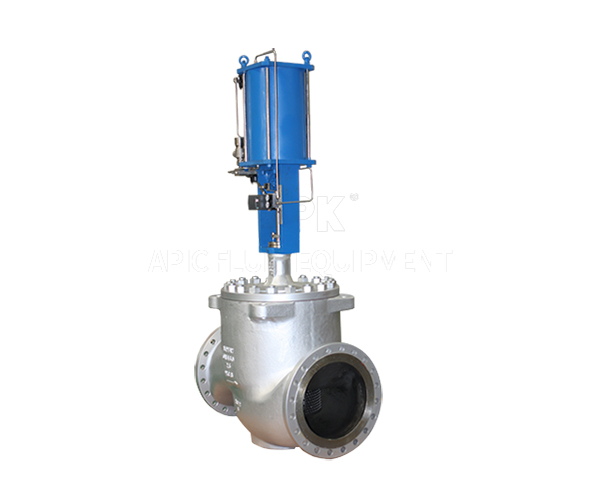

American standard gate valve: What Are the Export Options?

American standard Gate valves are among the most widely used industrial valves in global trade. They follow well-recognized U.S. standards such as ASME, API, and MSS, and are exported to energy, chemical, water, HVAC, and general industrial projects worldwide. Understanding the export options, technical parameters, and documentation requirements for American standard gate valves is essential for EPC contractors, distributors, engineering consultants, and end users.

This guide provides an in-depth, SEO-friendly overview of American standard gate valves for export, covering definitions, design features, common standards, materials, pressure ratings, end connections, testing, documentation, and packaging for international shipments. It is suitable for use as a blog article, category page, or industry resource.

1. What Is an American standard gate valve?

An American standard gate valve is a linear-motion shut-off valve designed according to U.S.-based industry standards such as:

• ASME (American Society of Mechanical Engineers)
• API (American Petroleum Institute)
• MSS (Manufacturers Standardization Society)

The primary function of a gate valve is to start or stop the flow of a fluid. The closure element, called a gate or wedge, moves perpendicular to the flow direction. Gate valves are not typically intended for throttling service; instead, they are used in fully open or fully closed positions.

In global markets, “American standard gate valve” usually refers to valves built to:

• ASME B16.34 – Valves: Flanged, Threaded, and Welding End
• ASME B16.10 – Face-to-Face and End-to-End Dimensions of Valves
• ASME B16.5 – Pipe Flanges and Flanged Fittings
• API 600 / API 602 / API 603 – Steel gate valves standards
• MSS SP-25, MSS SP-55, MSS SP-61 and similar

These standards are recognized worldwide, which makes American standard gate valves attractive options for export and international project specifications.

2. Key Features of American Standard Gate Valves

Exported American standard gate valves share several common engineering and performance characteristics:

• Bidirectional shut-off: Capable of sealing in both flow directions (depending on design).
• Full-port or reduced-port: Available with full bore (minimal pressure drop) or standard bore.
• Metal-to-metal seating: Typically steel body and hardened alloy or stainless steel trim.
• Non-rising or rising stem: Choice of stem design for compact installation or visual position indication.
• Bolted bonnet, pressure seal, or welded bonnet: To suit pressure classes and service conditions.
• Standardized dimensions: Face-to-face, flanged dimensions, and pressure ratings aligned with ASME/API.
• Materials traceability and testing: Applicable to key standards required for export projects.

These characteristics simplify interchangeability, make engineering design easier, and provide consistent performance for users worldwide.

3. Common Standards for American Standard Gate Valves

When planning export options for American standard gate valves, understanding the applicable standards is critical. The following table summarizes frequently used standards.

4. Design Types of American Standard Gate Valves

4.1 Wedge Types

American standard gate valves mainly use the following gate designs:

• Solid wedge – One-piece wedge; robust and simple. Suitable for a wide range of services including high pressure and temperature.
• Flexible wedge – One-piece wedge with a cut or groove to allow slight flexibility, reducing thermal binding and improving sealing.
• Split wedge or parallel slide – Two-piece design or parallel discs; good for tight sealing in high-temperature steam and thermal cycling services.

4.2 Bonnet Types

• Bolted bonnet – The most common configuration, allowing easy maintenance and gasket replacement.
• Pressure seal bonnet – Used in high-pressure, high-temperature services (e.g., power plants). Internal pressure enhances the sealing.
• Welded bonnet – Compact, leak-proof design for smaller sizes or specific high-integrity applications.

4.3 Stem Types

• Rising stem (OS&Y – Outside Screw and Yoke)
  • Stem moves up/down with the wedge; handwheel stays in one vertical position.
  • Clear visual indication of valve position.
  • Common in industrial pipelines above ground.
• Non-rising stem
  • Stem does not project upward; handwheel movement indicates opening.
  • More compact design for limited space or underground installations.

5. Typical Materials for Exported American Standard Gate Valves

Material selection strongly affects export options. Different regions and end users require specific alloys to match media, temperature, corrosion resistance, and cost. Common body and trim materials include:

For export projects, end users often specify materials according to ASTM, ASME, and NACE (for sour service) requirements. Thorough documentation and traceability are normally required.

6. Pressure Ratings and Sizes

6.1 Pressure Classes

American standard gate valves for export typically follow ASME pressure classes, including:

• Class 150
• Class 300
• Class 600
• Class 900
• Class 1500
• Class 2500

Each pressure class has defined pressure–temperature ratings depending on the material group. Gate valves must be selected based on the design pressure, design temperature, and applicable piping code (e.g., ASME B31.1, ASME B31.3).

6.2 Size Range

The size range for American standard gate valves is broad:

• API 602 forged steel gate valves: typically from 1/4" to 4" (DN6–DN100)
• API 600 / API 603 cast steel gate valves: generally from 2" to 48" (DN50–DN1200) or even larger

For export purposes, the most commonly traded size range lies between 2" and 24" in Class 150 to 600, but high-pressure and large-bore valves are also widely used in power, oil & gas, and petrochemical projects.

7. End Connections and Face-to-Face Dimensions

7.1 End Connections

Exported American standard gate valves can be supplied with various end connections to match international piping systems:

• Flanged Ends
  • To ASME B16.5 (NPS 1/2" to NPS 24")
  • Raised Face (RF), Flat Face (FF), or Ring Type Joint (RTJ)
  • Most frequently used for easy installation and maintenance.
• Butt-Weld (BW) Ends
  • To ASME B16.25
  • Preferred in high-temperature and high-pressure piping for long-term integrity.
• Socket-Weld (SW) Ends
  • Common for small API 602 forged steel gate valves.
  • Used in high-pressure small-bore pipelines.
• Threaded (NPT) Ends
  • NPT threads per ASME B1.20.1
  • Used for small valves in utility lines and non-critical applications.

7.2 Face-to-Face Dimensions

ASME B16.10 standardizes face-to-face and end-to-end dimensions for gate valves, ensuring that valves from different manufacturers are interchangeable in existing piping systems. This uniformity is extremely important in export markets, where replacement and retrofit are frequent requirements.

8. Typical Specifications Table for American Standard Gate Valves

The following table summarizes some typical specification ranges for exported American standard gate valves. Actual values depend on individual product designs and project requirements.

9. Performance Advantages of American Standard Gate Valves

American standard gate valves offer specific benefits that support their popularity in export markets:

• Global recognition: ASME and API standards are accepted in many countries, easing project approval and inspection.
• Interchangeability: Standardized face-to-face and flange dimensions allow replacement without piping modification.
• Wide material availability: Carbon steel, stainless steel, alloy steel, and specialty alloys support broad service conditions.
• Versatility of pressure classes: From low-pressure utility water up to high-pressure steam and hydrocarbon service.
• Full-bore options: Minimal pressure drop, suitable for pigging in pipelines and high-efficiency systems.
• Robust design life: Heavy-duty construction and hard-faced seating for demanding industrial processes.

These advantages make American standard gate valves attractive for energy, oil & gas, chemical, petrochemical, power generation, marine, and general industrial projects.

10. Applications in Global Projects

Typical export applications for American standard gate valves include:

• Oil & Gas Upstream – Wellhead connections, flowlines, gathering systems.
• Midstream Pipelines – Transmission pipelines, terminal stations, storage facilities.
• Downstream Refineries – Process units, tank farms, flare and utility systems.
• Petrochemical Plants – Hydrocarbon processing, polymers, aromatics, and intermediates.
• Power Generation – Fossil fuel power plants, high-pressure steam lines, boiler feedwater, condensate.
• Industrial Utilities – Cooling water, HVAC, compressed air, nitrogen, firewater networks.
• Water and Wastewater – Treatment plants, distribution networks, pumping stations.
• Marine & Offshore – Platforms, FPSOs, shipboard systems, ballast and bilge lines (with appropriate materials).

Exporting projects often combine American standard gate valves with other valve types (ball, globe, check, butterfly) depending on the specific service and control requirements.

11. Export Options for American Standard Gate Valves

Exporting American standard gate valves involves more than simply shipping the product. It includes compliance with destination regulations, packaging, marking, documentation, and optional customization. Key export options are described below.

11.1 Design and Compliance Options

• Standard design vs. project-specific design
  • Standard catalog valves meeting ASME/API are suitable for general distribution.
  • Project-specific valves may require special trims, coatings, NACE compliance, or extended pressure–temperature ranges.
• Compliance with regional directives
  • CE marking and Pressure Equipment Directive (PED) for the European Economic Area.
  • ATEX or IECEx certification for use in explosive atmospheres.
  • Local fire-safe, fugitive emission, or potable water certifications depending on end use.

11.2 End-User Customization Options

Export customers frequently require:

• Special trims: Different seat and wedge materials for erosive or corrosive fluids.
• Extended stem or underground service kits: For buried pipelines and remote handwheel operation.
• Locking devices: Padlock capability to secure open/closed position.
• Position indicators and limit switches: For remote monitoring.
• Pre-installed actuators: Electric, pneumatic, or hydraulic actuators with specific voltage, enclosure, and control interface standards.

11.3 Surface Protection and Coating Options

To handle different climates and corrosive environments in export destinations, surface protection is crucial:

• Shop primer only: For valves that will be coated on site.
• Epoxy or polyurethane coatings: For general outdoor exposure and marine environments.
• Galvanized components: Selected parts galvanized for additional corrosion protection.
• High-temperature coatings: For valves installed in hot process areas.

12. Testing and Inspection Requirements for Export

International customers typically enforce strict testing and inspection procedures for American standard gate valves. Compliance with recognized standards builds trust and reduces the risk of rejection at the site.

12.1 Standard Factory Tests

• Shell (body) test: Hydrostatic pressure test on the assembled valve, with pressure typically 1.5 times the rated pressure at ambient temperature.
• Seat leakage test: Hydrostatic and/or air test to confirm sealing performance against the seats.
• High-pressure gas test: When specified, to evaluate leakage under gas conditions.
• Operational test: Cycling the valve from fully closed to fully open to ensure smooth operation.

12.2 Additional Inspection for Export Projects

High-profile international projects may require:

• Third-party inspection by agencies such as ABS, Lloyd’s Register, DNV, BV, TUV, or other accredited bodies.
• Non-destructive examination (NDE/NDT) including radiography, ultrasonic testing, magnetic particle or dye penetrant testing on castings and welds.
• Positive material identification (PMI) to verify chemical composition of critical components.
• Fugitive emissions testing based on ISO 15848 or equivalent standards, when low-leakage performance is mandatory.
• Fire-safe testing to API 607 or similar, for valves in hydrocarbon lines where fire exposure is a risk.

All results are usually documented in a final data book or quality dossier that accompanies the valves in export shipments.

13. Documentation for Exported American Standard Gate Valves

Proper documentation is a major component of export readiness. Typical document packages include:

• General arrangement drawings (GA) – showing critical dimensions, face-to-face, and key features.
• Bill of materials (BOM) – listing all main components and their materials.
• Material test certificates (MTCs) – per EN 10204 3.1 or 3.2, with chemical composition and mechanical properties.
• Pressure test certificates – recording hydrostatic and leakage test results according to API 598 or MSS SP-61.
• Coating reports – detailing coating system, thickness, and surface preparation.
• Quality inspection reports – including NDE records and third-party inspection releases when applicable.
• Operation and maintenance manual – instructions for installation, operation, and maintenance.
• Packing lists and weight lists – for logistics, freight, and customs declaration.

Having a clear, complete documentation package speeds up customs clearance and project site acceptance.

14. Packaging, Marking, and Logistics for Export

American standard gate valves destined for international markets must be packaged and handled correctly to avoid damage and ensure compliance with shipping regulations.

14.1 Packaging Options

• Individual protection – Valves wrapped in plastic or VCI (volatile corrosion inhibitor) film to prevent corrosion.
• Wooden cases or pallets – Heat-treated and fumigated when required by destination countries; often compliant with ISPM 15.
• End protection – Flange protectors and end caps to maintain cleanliness inside the valve and protect sealing surfaces.
• Secured fixing – Valves firmly strapped or blocked to avoid movement during sea or land transport.

14.2 Marking Requirements

Valves and packaging typically require:

• Permanent valve markings according to MSS SP-25, including size, class, material, rating, heat number, and standard reference.
• Shipping marks on crates or pallets, indicating purchase order number, destination, net and gross weight, and handling symbols.
• Barcodes or QR codes for advanced traceability and warehouse management, when requested.

14.3 Logistics Considerations

• Mode of transport: Sea freight (FCL/LCL), air freight, rail, or truck depending on urgency and project schedule.
• Incoterms: Such as EXW, FOB, CIF, CFR, DAP, DDP, specifying responsibilities for transportation and risk.
• Insurance: Cargo insurance for high-value valve shipments, especially for remote or challenging destinations.

15. How to Specify American Standard Gate Valves for Export Projects

When preparing technical specifications for American standard gate valves in international projects, the following information is typically included:

• Valve type: gate valve, wedge type (solid, flexible, split).
• Design standard: API 600, API 602, API 603, ASME B16.34, etc.
• Size and rating: nominal size (NPS/DN) and ASME class.
• End connection: RF/RTJ flanged, BW, SW, or threaded.
• Body and bonnet materials: ASTM material grades.
• Trim: API trim number or detailed material list (wedge, seat, stem).
• Stem design: OS&Y rising stem or non-rising stem.
• Bonnet type: bolted, pressure seal, welded.
• Packing type: graphite, PTFE, or special low-emission packing.
• Coating system: type and thickness of external coating.
• Testing requirements: API 598, additional NDE, fire-safe, fugitive emissions.
• Third-party inspection: scope and inspection agency.
• Documentation: level of material certification, test records, and manuals.

Clear technical specifications reduce the risk of misunderstandings and ensure that exported American standard gate valves match project requirements and local regulations.

16. Comparison: American Standard vs. Other Regional Standards

In export markets, American standard gate valves compete with valves built to other regional standards. A simplified comparison is shown below.

Understanding these differences is important when selecting gate valves for projects that mix standards or for retrofit work where flanges and face-to-face dimensions must be compatible.

17. Selecting the Right Export Option for American Standard Gate Valves

To choose the appropriate export option for American standard gate valves, consider the following checklist:

• Service conditions: Medium type, temperature, pressure, and presence of solids or corrosive components.
• Local regulations: Pressure equipment directives, potable water approvals, explosion-proof requirements.
• Project philosophy: Preference for ASME/API or local standards; replacement strategies and stock compatibility.
• Maintenance strategy: Ease of servicing, availability of spare parts, local service capabilities.
• Lifecycle cost: Balancing purchase cost, expected service life, and downtime risk.
• Delivery schedule: Standard catalog items vs. customized solutions and their impact on lead time.

By addressing these factors, project managers and engineers can define the best configuration, documentation level, and logistics plan for exporting American standard gate valves.

18. Conclusion

American standard gate valves are a core product in global valve trade due to their standardized design, broad material options, and wide acceptance across industries. Export options cover a full range of sizes, pressure classes, end connections, coatings, certifications, and documentation packages.

When specifying American standard gate valves for export, careful attention must be paid to:

• Compliance with ASME, API, MSS, and any regional regulations in the destination country.
• Appropriate material selection for the fluid, temperature, and corrosion environment.
• End connection and dimension compatibility with existing or planned piping systems.
• Testing, inspection, and documentation requirements mandated by contracts or authorities.
• Packaging, marking, and logistics planning for safe and efficient international transport.

With a well-structured specification and an understanding of available export options, American standard gate valves can be reliably integrated into projects around the world, providing dependable isolation performance and long service life under demanding operating conditions.
