1. Definition of a Stainless Steel Manual Gate Valve

A manual gate valve is a linear motion valve used to start or stop the flow of a medium.

The closure element is called a gate or wedge, which moves up and down

perpendicular to the flow direction. When the valve is fully open, the gate is completely lifted out of

the flow path, resulting in minimal flow resistance. When closed, the gate is pressed into the seat,

providing a tight shutoff.

A stainless steel gate valve is simply a gate valve whose critical pressure-containing

components are manufactured from stainless steel materials such as CF8M (equivalent to

316 stainless steel), CF8 (equivalent to 304 stainless steel), and other stainless alloys.

Stainless steel provides excellent resistance to corrosion, erosion, and a wide range of process media.

A stainless steel manual gate valve therefore refers to a gate valve:

• Body and trim are made of stainless steel or stainless-steel-based alloys;
• Operated manually (typically via a handwheel, hand lever, or gear box);
• Used primarily for on/off isolation rather than throttling;
• Designed for pipelines carrying liquids, gases, or steam where corrosion resistance is required.

2. Core Design Features of a Stainless Steel Manual Gate Valve

The key features of a stainless steel manual gate valve are related to its internal design, body structure,

stem movement, and sealing arrangement. These design features directly affect performance, reliability,

and maintenance requirements.

2.1 Body Construction

The valve body is the main pressure-containing shell. In stainless steel manual gate valves,

the body is typically manufactured by investment casting, sand casting,

or forging, depending on size and pressure rating.

• Cast stainless steel bodies are common for small to medium sizes and moderate pressure ratings;
• Forged stainless steel bodies are preferred for high-pressure, high-temperature services;
• Internal surfaces in the flow path are often smooth to minimize turbulence and pressure drop.

2.2 Bonnet Design

The bonnet is the cover for the valve body and houses the stem packing arrangement.

Several bonnet designs are used:

• Bolted bonnet – most common in industrial stainless steel manual gate valves; provides a secure, maintainable pressure seal;
• Welded bonnet – used in high-pressure or high-temperature applications where leakage risk must be minimized;
• Pressure-seal bonnet – for very high pressure service, using internal pressure to enhance the seal between body and bonnet.

2.3 Rising Stem vs. Non-Rising Stem

Stainless steel manual gate valves are available with either a

rising stem or a non-rising stem configuration.

2.3.1 Rising Stem (Outside Screw & Yoke, OS&Y)

• The stem moves up and down as the handwheel is turned;
• The stem threads are outside the flow and packing area;
• Flow position can be seen easily by the visible stem extension;
• Common in industrial piping, fire protection, and critical isolation services.

2.3.2 Non-Rising Stem (NRS)

• The stem does not extend outwards; only rotates in place;
• Stem threads are inside the valve and in contact with the medium;
• Suitable where vertical space is limited, such as buried or underground installations;
• Requires careful material selection due to contact with the fluid.

2.4 Gate (Wedge) Types

The gate or wedge is the disc element that provides shutoff. In stainless

steel valves, the gate is also made from stainless steel or hard-faced stainless alloys.

• Solid wedge – one-piece wedge, widely used for high-strength and general-purpose applications;
• Flexible wedge – has a cut or groove to allow slight flexibility and better seat contact in case of minor misalignment;
• Split wedge – two-piece design that can self-adjust to seat surfaces, often used in large-diameter or high-temperature differential services.

2.5 Seating and Sealing

The seat is where the gate contacts to provide a leak-tight seal.

Stainless steel manual gate valves may use:

• Integral seats – seat surfaces are machined directly in the valve body;
• Renewable or replaceable seats – seat rings are threaded or welded into the body;
• Hard-faced seats – surfaces are overlaid with harder alloys (e.g., Stellite) for wear resistance.

The packing around the stem (often PTFE or graphite) ensures tight sealing between stem

and bonnet to prevent external leakage.

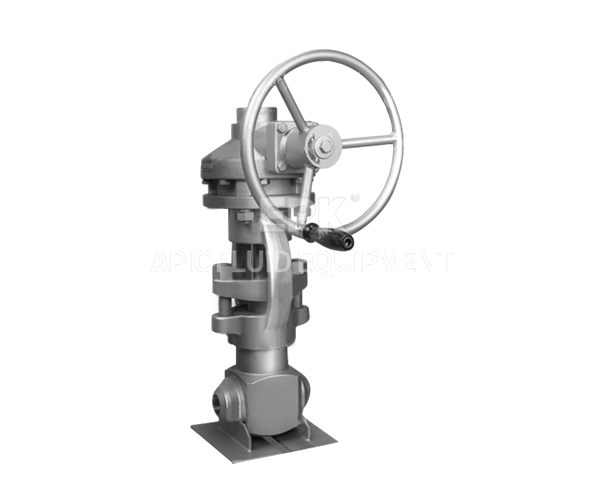

2.6 Manual Operation Mechanism

A stainless steel manual gate valve is operated by:

• Handwheel – the most common mechanism, attached to the stem directly or via a gear box;
• Lever or wrench – used on smaller gate valves for quick operation;
• Bevel gear or spur gear operator – used for larger diameter or high-pressure valves to reduce operating torque.

Manual operation provides simple and reliable control without the need for power or automation.

3. Key Features and Advantages of Stainless Steel Manual Gate Valves

Stainless steel manual gate valves offer multiple advantages that make them highly suitable for aggressive

environments and critical isolation services.

3.1 Corrosion Resistance

The primary feature of a stainless steel manual gate valve is its corrosion resistance.

Stainless steel contains chromium (typically 18% or more) and other alloying elements that form a stable

chromium oxide layer on the surface. This passive film protects the valve body and internal parts against:

• General corrosion in water, steam, and many chemicals;
• Atmospheric corrosion and marine environments;
• Certain acidic and alkaline media, depending on the stainless steel grade.

3.2 High Strength and Durability

Stainless steel is stronger and more fatigue-resistant than many other common valve materials such

as cast iron or brass. As a result:

• The valve can withstand higher internal pressures and temperature variations;
• It offers a longer service life under cyclic loading;
• It is suitable for tough industrial and offshore environments.

3.3 Wide Temperature and Pressure Range

Depending on the stainless steel grade and design standard, stainless steel manual gate valves can

operate in:

• Low-temperature and cryogenic services (with appropriate design);
• High-temperature services in power plants or steam systems;
• Medium to high pressure ranges typical for industrial process piping.

3.4 Full Bore and Low Pressure Drop

Many stainless steel manual gate valves are designed with a full bore or nearly full

bore passage. When fully open:

• The flow path is almost as large as the connecting pipeline;
• The valve introduces minimal pressure loss;
• Fluid velocity and turbulence are reduced, minimizing erosion.

3.5 Bi-Directional Shutoff

A typical gate valve is designed to provide shutoff in both directions of flow.

Stainless steel manual gate valves, when properly designed and installed, offer:

• Reliable bi-directional sealing capability;
• Flexible installation orientation with respect to flow direction;
• Ease of pipeline layout without needing to consider a strict flow arrow.

3.6 Easy Visual Indication of Valve Position (for Rising Stem)

For rising stem stainless steel manual gate valves, the position of the stem provides

a clear indication of whether the valve is open or closed:

• Stem extended upwards – valve fully open;
• Stem retracted – valve closed.

This visual indication is especially important in safety-critical systems and manual operating environments.

3.7 Low Maintenance Requirements

Stainless steel manual gate valves typically require:

• Periodic checking and adjustment of packing;
• Occasional lubrication of stem and moving parts (where applicable);
• Inspection for wear of seats and gate in abrasive services.

Due to the corrosion resistance and robust structure, maintenance intervals are usually longer compared

with non-stainless materials.

3.8 Non-Contaminating Material

Stainless steel is widely used where media purity is important. Stainless steel manual gate valves:

• Do not readily leach contaminants into process fluids under normal conditions;
• Are suitable for applications in food, beverage, and certain pharmaceutical lines (subject to specific regulatory and surface finish requirements);
• Help maintain cleanliness in high-purity water systems compared with carbon steel alternatives.

4. Typical Sizes, Pressure Ratings, and Dimensions

Stainless steel manual gate valves are produced in a wide range of nominal sizes and

pressure classes. The following table summarizes typical ranges for industrial valves

(actual availability depends on manufacturer and standard).

For detailed dimensions, including face-to-face lengths and flange drilling, refer to the specific design

standard for the valve (such as ASME B16.10 and ASME B16.5 or EN 1092-1).

5. Materials of Construction

The corrosion resistance and mechanical performance of a stainless steel manual gate valve depend on the

selected materials for the body, bonnet, trim, and sealing elements.

5.1 Common Stainless Steel Body and Bonnet Materials

5.2 Stem and Trim Materials

The stem, gate, and seat materials must withstand wear,

corrosion, and repeated operation. Typical combinations include:

5.3 Packing and Gasket Materials

The packing and gaskets used in stainless steel manual gate valves must

be compatible with the process medium and service conditions.

• PTFE (Teflon) packing – suitable for many chemicals, low friction, lower temperature range;
• Graphite packing – excellent high-temperature performance, good chemical resistance;
• Spiral wound gaskets – commonly used between body and bonnet for bolted bonnet designs.

6. End Connection Types

The end connection of a stainless steel manual gate valve is chosen according to pipeline standards,

pressure class, and installation method.

7. Standards and Certifications

Stainless steel manual gate valves are manufactured in accordance with international design standards

and testing requirements to ensure safety, reliability, and interchangeability.

7.1 Common Design and Construction Standards

• ASME B16.34 – Valves – Flanged, Threaded, and Welding End;
• API 600 – Steel Gate Valves – Flanged and Butt-welding Ends;
• API 602 – Compact Steel Gate Valves – typically for small-bore forged valves;
• EN 1984 – Industrial valves – Steel gate valves;
• ISO 10434 – Bolted bonnet steel gate valves for the petroleum and natural gas industries.

7.2 Face-to-Face and End-to-End Dimensions

• ASME B16.10 – Face-to-Face and End-to-End Dimensions of Valves;
• EN 558-1 – Industrial valves – Face-to-face and center-to-face dimensions.

7.3 Pressure-Temperature Ratings

Pressure-temperature ratings of stainless steel manual gate valves are typically governed by:

• ASME B16.34 for ASME class valves;
• EN 12516 for European PN rated valves.

7.4 Testing Standards

To verify performance, each valve type must pass hydrostatic and seat leakage tests based on standards such as:

• API 598 – Valve Inspection and Testing;
• EN 12266-1 & EN 12266-2 – Testing of industrial valves;
• ISO 5208 – Pressure testing of metallic valves.

8. Performance Characteristics

The performance of a stainless steel manual gate valve is evaluated in terms of pressure drop, shutoff capabilities, torque, and service life.

8.1 Flow Coefficient (Cv) and Pressure Drop

Because of the relatively straight flow path, a fully open stainless steel manual gate valve has a

high Cv value and low pressure drop compared with other valve types such as Globe valves.

8.2 Shutoff Tightness

Proper gate and seat design allow stainless steel manual gate valves to provide very tight isolation

when fully closed. Leakage classes typically comply with API or ISO seat leakage standards.

8.3 Torque Requirements

Manual operation torque depends on:

• Valve size and pressure;
• Seat and packing friction;
• Type of stem (rising vs non-rising) and presence of gearing.

Large sizes or high-pressure stainless steel gate valves often incorporate a gear operator to reduce required handwheel effort.

8.4 Operating Speed

Manual gate valves are generally considered slow opening and closing devices because:

• Several turns of the handwheel are required to move the gate completely;
• Slow operation helps prevent water hammer effects in pipelines.

9. Applications of Stainless Steel Manual Gate Valves

Due to their combination of corrosion resistance, high strength, and reliable shutoff,

stainless steel manual gate valves are widely used across multiple sectors.

9.1 Water and Wastewater Treatment

• Raw water intake and distribution lines;
• Potable water systems (with appropriate material compliance);
• Wastewater treatment plants and effluent pipelines.

9.2 Chemical and Petrochemical Processing

• Handling of corrosive chemicals and solvents;
• Process lines carrying acids, alkalis, and organic compounds;
• Unit operations requiring robust isolation valves.

9.3 Oil and Gas Industry

• Onshore and offshore pipelines for oil, gas, and produced water;
• Refinery units where stainless steel offers extended service life;
• Auxiliary systems such as utility water and fire water networks.

9.4 Power Generation

• Boiler feedwater lines and condensate systems;
• Steam distribution where stainless steel temperature limits allow;
• Cooling water systems with chloride-containing waters.

9.5 Food, Beverage, and Pharmaceutical

Stainless steel is commonly associated with sanitary and hygienic applications. However, for

food, beverage, and pharmaceutical pipelines requiring high levels of cleanliness,

specialized sanitary gate valves or other hygienic valve types are often used.

In non-product-contact services (such as utilities, steam, and clean water distribution), standard

stainless steel manual gate valves may still be applied.

9.6 HVAC and Building Services

• Chilled water, hot water, and condenser water lines;
• Fire protection systems, especially where corrosion or external exposure is a concern;
• Building services in coastal or industrial environments.

10. Selection Considerations for Stainless Steel Manual Gate Valves

When selecting a stainless steel manual gate valve for a project, several technical and economic

factors must be considered.

10.1 Media Type and Corrosivity

• Identify whether the medium is water, oil, gas, steam, acid, alkali, or solvent;
• Evaluate the need for higher alloy stainless steel (such as 316 or duplex) based on chloride content or acidity;
• Consider temperature and concentration of the medium, which influence corrosion rate.

10.2 Pressure and Temperature Rating

The valve’s pressure-temperature rating must match or exceed system requirements:

• Select an appropriate ASME class or PN rating;
• Verify allowable pressure at maximum service temperature from relevant standards;
• Include safety margins as specified by codes and design standards.

10.3 End Connections and Piping Standards

• Ensure compatible flange rating and facing (e.g., RF, RTJ) with pipeline flanges;
• Confirm thread standard (NPT, BSPP, BSPT) for threaded ends;
• Choose welding ends for permanent, high-integrity joints.

10.4 Stem Type and Available Space

For installations with limited vertical clearance, a non-rising stem stainless steel

manual gate valve may be more appropriate, while rising stem OS&Y types are preferred

where clear visual indication is desired.

10.5 Frequency of Operation

Gate valves are best suited for infrequent operation as isolation valves. If the valve

will be used frequently for flow control, an alternative such as a globe or Ball valve might be more

suitable. Stainless steel manual gate valves can still function in systems with moderate operating cycles,

but seat wear and stem packing life must be considered.

10.6 Cost vs. Performance

Stainless steel is generally more expensive than carbon steel or cast iron. However, the higher initial

cost is often offset by:

• Reduced maintenance and replacement frequency;
• Lower risk of corrosion-related failures;
• Improved lifecycle performance in aggressive environments.

11. Comparison with Other Valve Types

Stainless steel manual gate valves are often compared with other manual valve types. The table below

highlights some key differences.

12. Installation and Maintenance Considerations

Proper installation and maintenance are essential for maximizing the lifespan and performance of

stainless steel manual gate valves.

12.1 Installation Best Practices

• Confirm that flange faces and gaskets are clean and aligned;
• Install the valve in a suitable orientation, considering accessibility for operation and maintenance;
• Support adjacent piping to avoid excessive loads on valve flanges or body;
• For rising stem valves, ensure there is sufficient clearance for full stem travel.

12.2 Regular Inspection and Maintenance

• Periodically check for external leakage around the stem and bonnet joint;
• Gradually adjust packing gland bolts if packing leakage occurs, avoiding over-tightening;
• Operate the valve fully open and closed at planned intervals to ensure stem and gate movement remains free;
• Inspect seats and gate surfaces during shutdowns in abrasive or high-cycling services.

12.3 Replacement of Wear Parts

In many stainless steel manual gate valves, the packing, gaskets,

and sometimes the seat rings and gate can be replaced during a major

overhaul, extending the useful life of the valve body and bonnet.

13. Key Features Summary Table

The following summary consolidates the essential features of a stainless steel manual gate valve for quick reference.

14. SEO-Oriented FAQ on Stainless Steel Manual Gate Valves

14.1 What is a stainless steel manual gate valve used for?

A stainless steel manual gate valve is mainly used as an on/off isolation valve in pipelines

carrying liquids, gases, or steam. Its stainless steel construction makes it suitable for

corrosive environments such as chemical plants, marine applications, and water treatment facilities.

14.2 What are the main advantages of a stainless steel manual gate valve?

The main advantages include:

• Excellent corrosion resistance compared with carbon steel and cast iron;
• High mechanical strength and temperature capability;
• Low pressure drop when fully open;
• Bi-directional sealing capability;
• Simple and reliable manual operation.

14.3 Is a stainless steel gate valve suitable for throttling?

A stainless steel gate valve is designed primarily for full open or full close operation.

It is generally not recommended for continuous throttling because partial opening can

cause vibration, seat damage, and erosion of the gate and seats. For throttling service, a globe valve or

control valve is usually preferred.

14.4 What is the difference between a rising stem and non-rising stem gate valve?

In a rising stem stainless steel manual gate valve, the stem moves up when the valve is

opened, providing an easy visual indication of valve position. In a non-rising stem valve,

the stem does not move vertically; it only rotates, making it suitable for confined spaces or underground

installations.

14.5 Which standards apply to stainless steel manual gate valves?

Common standards include ASME B16.34, API 600, API 602, EN 1984, and ISO 10434 for design and construction.

Testing is typically performed according to API 598, EN 12266, or ISO 5208.

14.6 How do I select the right stainless steel grade for a manual gate valve?

Select the stainless steel grade based on:

• Chemical composition of the process medium;
• Operating temperature and pressure;
• Requirements for resistance to pitting, crevice corrosion, and stress corrosion cracking;
• Applicable industry codes or specifications.

14.7 Can stainless steel manual gate valves be used in potable water systems?

Yes, stainless steel manual gate valves are commonly used in potable water systems, provided that the

selected stainless steel grade and sealing materials comply with relevant drinking water regulations

and standards in the region of installation.
