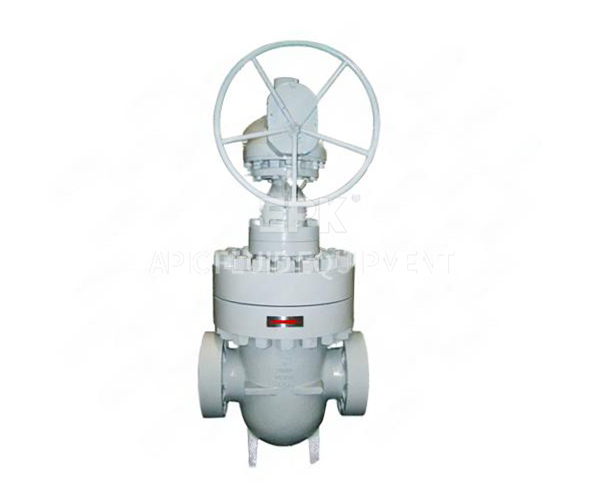

High temperature and high pressure gate valve: Why is it used in refineries?

2025-11-04 06:24:18

High Temperature and High Pressure Gate valves in Refineries: Applications and Importance

Introduction

High temperature and high pressure (HTHP) gate valves play a critical role in refinery operations, where extreme process conditions are common. These specialized valves are engineered to withstand the demanding environments found in petroleum refining processes, ensuring safe, reliable, and efficient operations. This paper explores the reasons why HTHP gate valves are extensively used in refineries, examining their design characteristics, operational advantages, and specific applications within refinery processes.

Characteristics of Refinery Processes

Refineries handle crude oil and its derivatives under conditions that frequently involve:

1. **Extreme temperatures** ranging from cryogenic conditions in liquefied gas handling to over 1000°F (538°C) in catalytic cracking units

2. **High pressures** that can exceed 2500 psi in hydrocracking and hydroprocessing units

3. **Corrosive media** including acidic compounds, hydrogen sulfide, and other aggressive chemicals

4. **Abrasive materials** such as catalyst particles in fluid catalytic cracking (FCC) units

These challenging conditions demand valves that can maintain integrity while providing reliable shut-off capabilities. Gate valves, particularly those designed for HTHP service, meet these requirements through specialized design features.

Design Features of HTHP Gate Valves for Refineries

HTHP gate valves incorporate several critical design elements that make them suitable for refinery applications:

1. Robust Construction Materials

- **Body and bonnet materials**: Typically forged or cast from high-grade alloys like ASTM A217 WC9, C5, or C12 for high temperature service

- **Trim materials**: Stellite or other hard-facing materials for erosion and corrosion resistance

- **Gasket materials**: Flexible graphite or spiral-wound gaskets that maintain sealing capability at high temperatures

2. Pressure-Containing Design

- **Full-bore construction**: Minimizes pressure drop across the valve

- **Thick-walled bodies**: Engineered to withstand internal pressures without deformation

- **Bolted bonnets**: Provide secure closure under high pressure conditions

3. Thermal Management Features

- **Extended bonnets**: Help isolate packing from process heat

- **Heat-resistant packing**: Such as graphite-based materials that maintain sealing integrity at elevated temperatures

- **Cooling fins or jackets**: On some designs to manage extreme heat transfer

4. Specialized Seating Arrangements

- **Parallel or wedge-type discs**: Designed to maintain sealing contact despite thermal expansion

- **Metal-to-metal seats**: Provide reliable sealing in high temperature applications where soft seats would degrade

- **Pressure-energized seats**: Improve sealing capability as system pressure increases

Why Gate Valves Are Preferred in Refinery Applications

Several factors make gate valves the preferred choice for many refinery applications:

1. Full-Port Design

Gate valves typically offer full-bore openings when fully open, minimizing pressure drop across the valve. This is particularly important in refinery processes where:

- Pumping energy costs are significant

- Flow restrictions could lead to undesirable process conditions

- Solids or viscous materials must pass through without obstruction

2. Positive Shut-Off Capability

The gate valve design provides bubble-tight shut-off when properly specified and maintained, which is critical for:

- Process isolation during maintenance

- Safety shutdown scenarios

- Preventing cross-contamination between products

3. Durability in Severe Service

HTHP gate valves are designed to withstand:

- Thermal cycling between process conditions

- Pressure fluctuations common in refinery operations

- Exposure to corrosive and erosive media

4. Operational Flexibility

Gate valves can handle:

- Bi-directional flow (in most designs)

- A wide range of flow velocities

- Both liquid and gaseous media

Specific Refinery Applications

HTHP gate valves find application throughout refinery processes:

1. Crude Oil Distillation Units

- **Preheat train isolation**: Handling hot crude at temperatures up to 700°F (370°C)

- **Tower feed control**: Managing flow to atmospheric and vacuum distillation columns

2. Catalytic Cracking Units (FCC)

- **Regenerator lines**: Withstanding temperatures exceeding 1300°F (700°C) with catalyst-laden flow

- **Slide valves**: Special gate valves controlling catalyst flow between reactor and regenerator

3. Hydroprocessing Units

- **Reactor feed systems**: Operating at pressures up to 3000 psi (207 bar) with hydrogen service

- **Product separation**: Handling high-pressure, high-temperature hydrocarbon streams

4. Coking Units

- **Decoking operations**: Resisting thermal shock during steam/water quenching cycles

- **Coke drum isolation**: Providing positive shut-off for maintenance operations

5. Utilities Systems

- **Steam distribution**: Managing high-pressure steam up to 1500 psi (103 bar) at temperatures over 1000°F (540°C)

- **Boiler feedwater**: Controlling critical water flows to steam generators

Maintenance and Reliability Considerations

The reliability of HTHP gate valves in refinery service depends on:

1. **Proper material selection** matching valve components to process conditions

2. **Correct installation practices** including proper alignment and torqueing

3. **Regular maintenance programs** including:

- Packing adjustments

- Seat inspections

- Operational testing

4. **Operator training** on proper valve operation to prevent damage from:

- Excessive torque during operation

- Attempting to close against high differential pressure

- Thermal shock scenarios

Emerging Technologies and Future Trends

Recent developments in HTHP gate valve technology for refineries include:

1. **Advanced materials**:

- Super alloys for even higher temperature capability

- Nanocomposite coatings for improved erosion resistance

2. **Smart valve technology**:

- Embedded sensors for monitoring:

- Seat wear

- Stem position

- Temperature gradients

- Wireless connectivity for condition monitoring

3. **Improved sealing technologies**:

- Self-energizing seals that improve with pressure and temperature

- Metal-seated designs with improved leak-tightness

4. **Reduced-emission designs**:

- Low-emission packing systems

- Improved stem sealing for fugitive emission control

Conclusion

High temperature and high pressure gate valves are indispensable components in refinery operations due to their ability to withstand extreme process conditions while providing reliable isolation and flow control. Their robust construction, positive shut-off capability, and full-bore design make them particularly suited for the demanding environments found in crude oil processing, catalytic cracking, hydroprocessing, and other refinery units. As refinery processes continue to push the boundaries of temperature and pressure to meet evolving product demands and environmental regulations, HTHP gate valves will remain critical components in ensuring safe, efficient, and reliable operations. Proper selection, installation, and maintenance of these valves are essential for maximizing refinery uptime and minimizing safety risks associated with high-energy process fluids.
