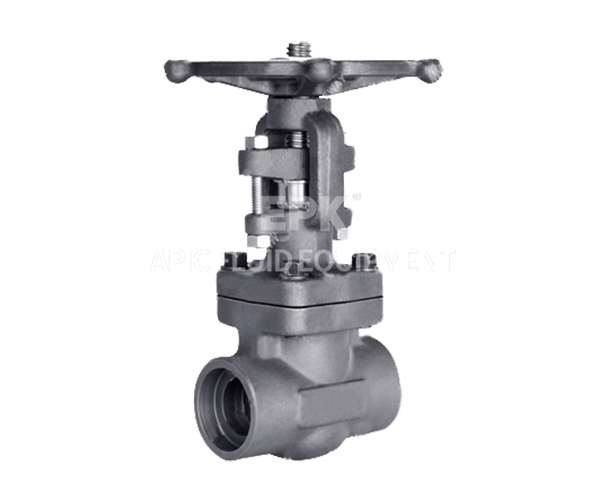

**Manual gate valve Selection Criteria: What to Consider?**

Manual Gate valves are widely used in various industries for controlling the flow of liquids and gases. They are known for their ability to provide a tight seal and their suitability for both on/off and throttling applications. However, selecting the right manual gate valve for a specific application requires careful consideration of several factors. This guide outlines the key criteria to consider when choosing a manual gate valve.

---

**1. Valve Size and Pressure Rating**

The size of the valve and its pressure rating are fundamental factors in the selection process.

- **Valve Size:** The valve size must match the pipe diameter to ensure proper flow control. Undersized valves can cause excessive pressure drop, while oversized valves may lead to inefficiency and higher costs.

- **Pressure Rating:** The valve must be able to withstand the maximum pressure of the system. Pressure ratings are typically defined by standards such as ANSI or PN. Choosing a valve with a higher pressure rating than required ensures safety and longevity.

---

**2. Material Selection**

The material of the valve body, gate, and seals must be compatible with the fluid being handled and the operating environment.

- **Body Material:** Common materials include cast iron, carbon steel, stainless steel, and bronze. For corrosive or high-temperature applications, stainless steel or exotic alloys may be necessary.

- **Gate Material:** The gate is usually made of materials that resist wear and corrosion, such as stainless steel or brass.

- **Seal Material:** Seals and gaskets must be compatible with the fluid. Common materials include EPDM, NBR, PTFE, and Viton.

---

**3. Type of Gate Valve**

Gate valves come in different designs, each suited for specific applications.

- **Rising Stem vs. Non-Rising Stem:** Rising stem valves provide a visual indication of the valve position, while non-rising stem valves are more compact and suitable for limited space.

- **Solid Wedge vs. Flexible Wedge:** Solid wedge gates are durable and suitable for high-pressure applications, while flexible wedge gates can handle thermal expansion and are better for temperature variations.

- **Knife Gate Valve:** Ideal for handling slurries, viscous fluids, or media with suspended solids.

---

**4. Flow Characteristics**

Gate valves are primarily designed for on/off applications but can also be used for throttling in certain cases.

- **Full Bore vs. Reduced Bore:** Full bore valves allow unrestricted flow, minimizing pressure drop, while reduced bore valves are smaller and lighter but may cause some flow restriction.

- **Flow Direction:** Some gate valves are bidirectional, while others are designed for unidirectional flow. Ensure the valve is installed correctly to avoid leakage or damage.

---

**5. Operating Conditions**

The operating environment plays a significant role in valve selection.

- **Temperature:** High temperatures can affect the material integrity and sealing performance. Choose materials and seals that can withstand the expected temperature range.

- **Pressure:** The valve must handle both the maximum and minimum pressures in the system.

- **Corrosive or Abrasive Media:** For corrosive or abrasive fluids, select materials and designs that resist wear and degradation.

---

**6. End Connections**

The type of end connection must match the piping system.

- **Flanged Ends:** Commonly used in industrial applications for easy installation and removal.

- **Threaded Ends:** Suitable for smaller pipes and low-pressure systems.

- **Welded Ends:** Provide a permanent, leak-proof connection for high-pressure or critical applications.

---

**7. Actuation and Operation**

Manual gate valves are operated by hand, but the ease of operation depends on the design.

- **Handwheel vs. Lever:** Handwheels are suitable for larger valves and high-torque applications, while levers are used for smaller valves and quick operation.

- **Gear Operation:** For large valves or high-pressure systems, a gear operator can reduce the effort required to open or close the valve.

---

**8. Standards and Certifications**

Ensure the valve complies with industry standards and certifications.

- **Standards:** Common standards include API, ASME, ANSI, ISO, and DIN.

- **Certifications:** Look for certifications such as ISO 9001, API 600, or CE marking to ensure quality and reliability.

---

**9. Maintenance and Durability**

Consider the ease of maintenance and the expected lifespan of the valve.

- **Maintenance:** Valves with accessible components and replaceable seals are easier to maintain.

- **Durability:** Choose valves made from high-quality materials and designed for long-term performance in your specific application.

---

**10. Cost and Availability**

While cost is an important factor, it should not compromise quality or performance.

- **Initial Cost vs. Lifecycle Cost:** Consider the total cost of ownership, including installation, maintenance, and potential downtime.

- **Availability:** Ensure the valve is readily available to avoid delays in procurement and installation.

---

**11. Application-Specific Requirements**

Different applications may have unique requirements.

- **Water and Wastewater:** Choose materials resistant to corrosion and scaling.

- **Oil and Gas:** Opt for high-pressure and high-temperature valves with robust sealing.

- **Food and Beverage:** Use valves made from food-grade materials with smooth surfaces to prevent contamination.

- **Pharmaceutical:** Select valves that meet strict hygiene and sterilization standards.

---

**Conclusion**

Selecting the right manual gate valve involves a thorough evaluation of the application requirements, operating conditions, and valve characteristics. By considering factors such as size, material, type, flow characteristics, and standards, you can ensure optimal performance, reliability, and longevity of the valve. Always consult with manufacturers or industry experts to make an informed decision tailored to your specific needs.
